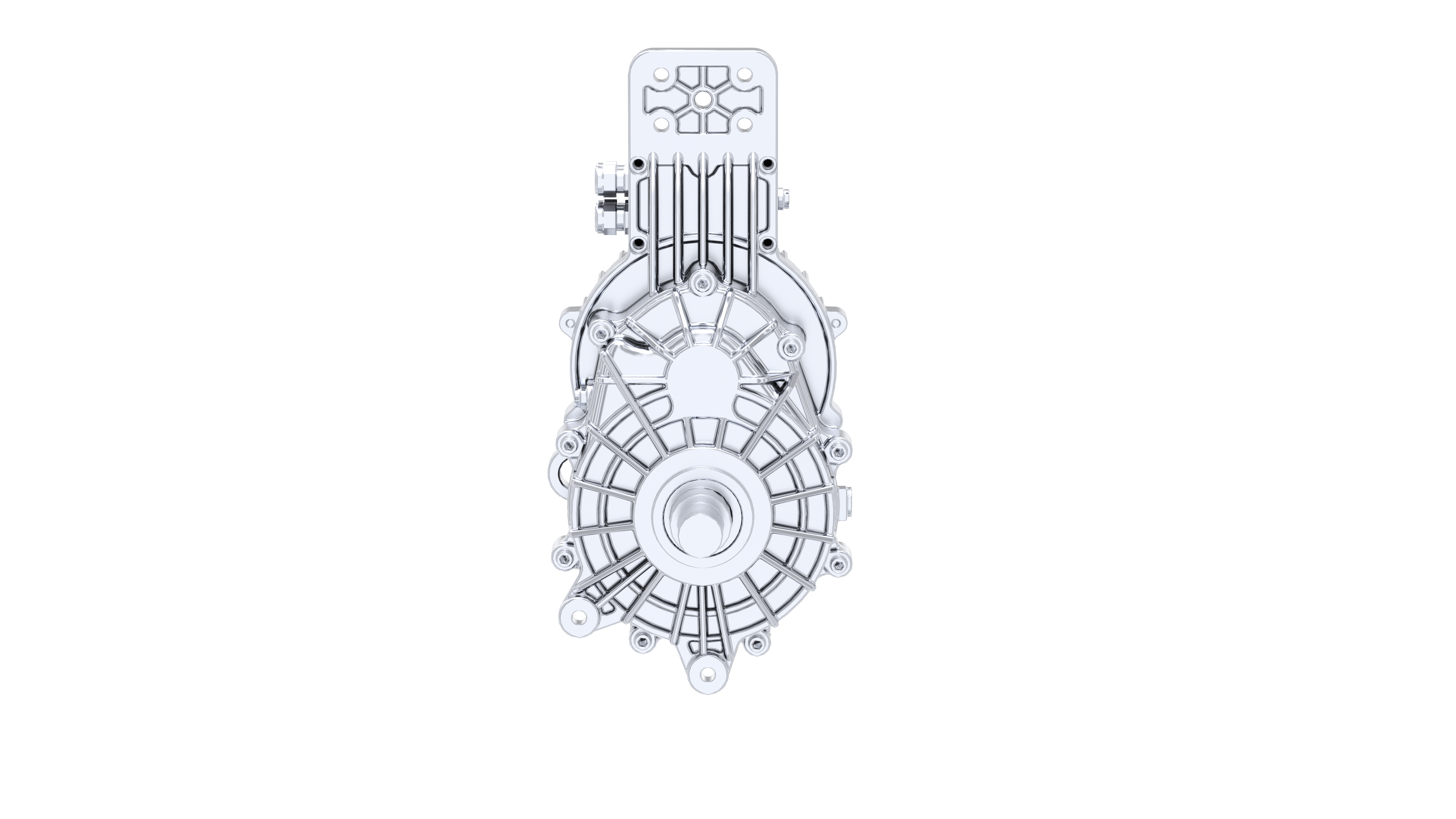

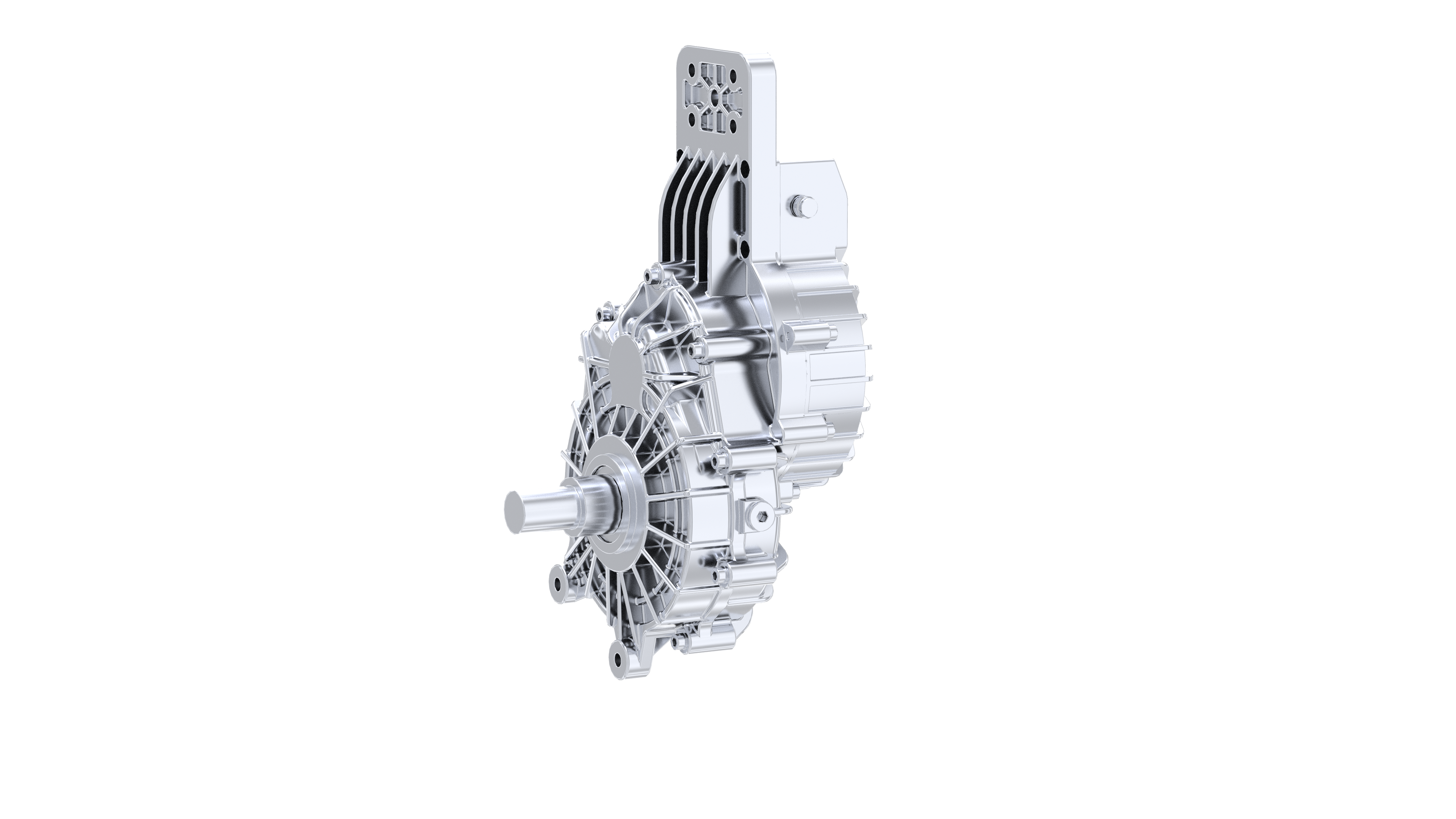

PDS108KCS
Brochures
| Nominal busbar voltage (VDC) | 72 |
| Ratio | 8.75 |
| Rated power (kW) | 3.5 |
| Peak power (kW) | 6 |
| Rated speed (rpm) | 4500 |
| Peak speed (rpm) | 8000 |
| Rated torque(N·m） | 7.4 |
| Peak torque(N·m) | 22 |
| Maximum efficiency | 94% |
| Cooling form | Natural cooled |
| Dimension(mm) | 210x186.5X357.5 |
| Weight (kg) | 10 |
| Wheel-end maximum output torque (N·m) | 193 |
